2026Mass TransferDistillationeasyMCQ1 Mark
A binary mixture of butane and butadiene is to be separated in an extractive distillation using furfural. Furfural lowers the activity of butadiene more than it does for butane. Consider the distillation sequence shown in the figure. Match the component labels in Group I with chemical species in Group II. Group IP. Component XQ. Component YR. Component ZGroup II1. Butane     2. Butadiene3. Furfural   \genfrac{}{}{0pt}{}{\textbf{Group I}}{\begin{aligned} P.\ \text{Component X} \\ Q.\ \text{Component Y} \\ R.\ \text{Component Z} \end{aligned}} \qquad\qquad\qquad \genfrac{}{}{0pt}{}{\textbf{Group II}}{\begin{aligned} 1.\ \text{Butane} \ \ \ \ \ \\ 2.\ \text{Butadiene} \\ 3.\ \text{Furfural} \ \ \ \end{aligned}}

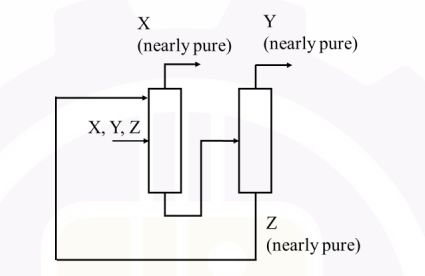

Question figure
Loading peer stats…
Select the correct option:
